Ignition Coil And Spark Plug Removal/Installation: Front

  1. Remove the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT )
  2. Remove the harness clamp (A) and the bolt (B), then remove the harness holder (C) from the bracket

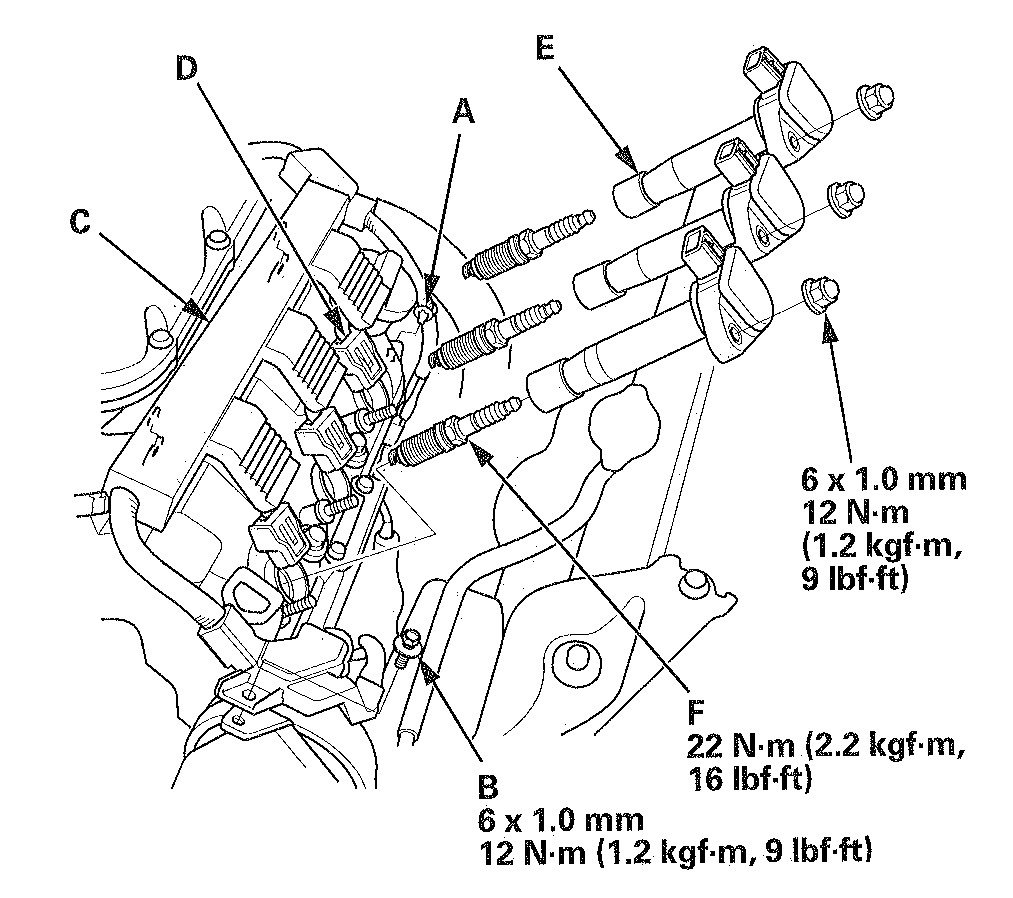

    Fig 1: Harness Clamp, Harness Holder And Bolt With Torque Specifications
    G05986536Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the ignition coil connectors (D), then remove the front ignition coils (E)
  4. Remove the spark plugs (F) and inspect them (see Spark Plug Inspection ).
  5. Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight. Torque them to 22 Nm (2.2 kgf.m, 16 lb.ft).
  6. Install the front ignition coils in the reverse order of removal
