Component Location Index

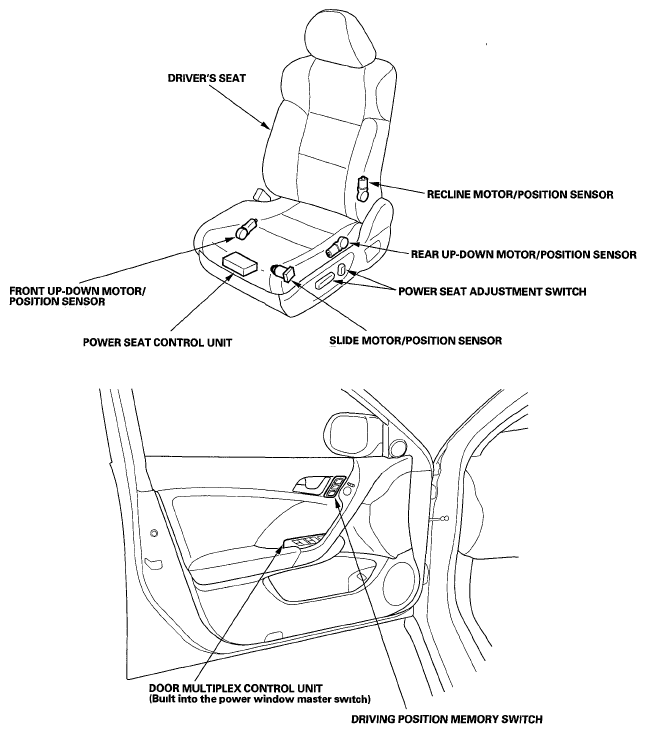

Fig 1: Identifying Driver Position Memory System Component Location
G05995192Courtesy of AMERICAN HONDA MOTOR CO., INC.
