Driving Position Memory Switch Test/Replacement

Carefully pry the driving position memory switch (A) out from the door panel

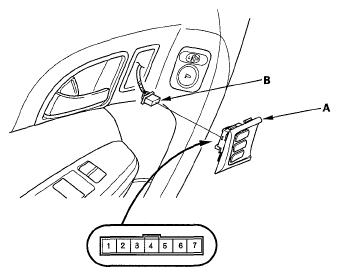

Fig 1: Identifying Driving Position Memory Switch And 7P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 7P connector (B) from the switch
Check for continuity between the terminals in each switch position according to the table

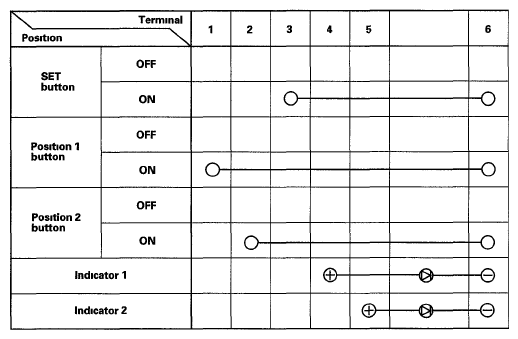

Fig 2: Driving Position Memory Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch
