DTC P1732: Problem in Shift Control System: Notes

• Shift Solenoid Valves B or C Stuck ON
• Shift Valves B or C Stuck

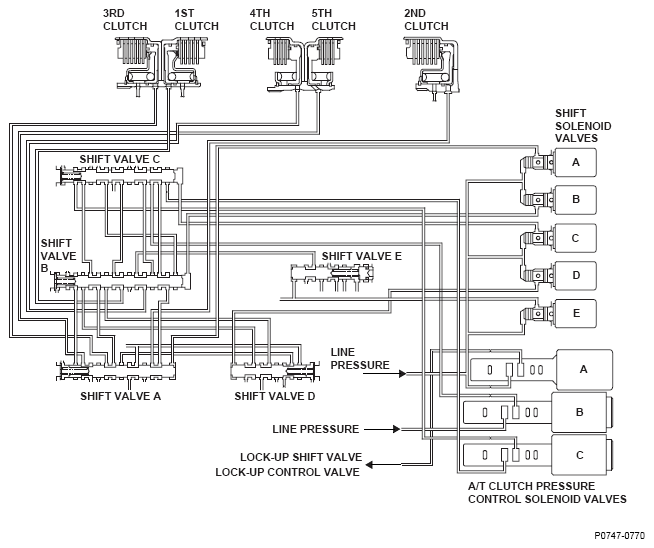

  Fig 1: Problem In Shift Control System - Circuit Diagram

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

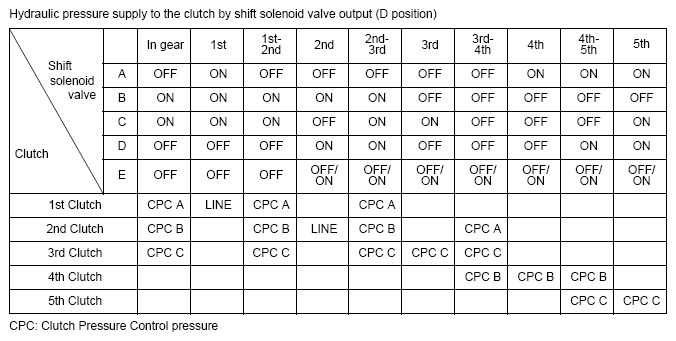

Fig 2: Hydraulic Pressure Supply To Clutch By Shift Solenoid Valve Output Chart (D Position)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
