CMP Sensor A Replacement

  1. Disconnect the CMP sensor A connector (B)

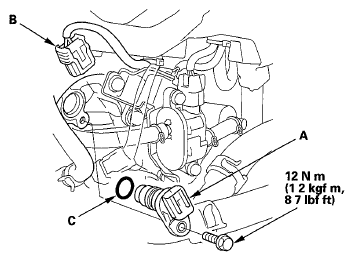

    Fig 1: CMP Sensor A Connector With Torque Specification
    G05992464Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove CMP sensor A from the intake camshaft side of the cylinder head
  3. Install the parts in the reverse order of removal with a new O-ring (C)
