EVAP Canister Vent Shut Valve Replacement

Raise the vehicle on a lift.
Remove the EVAP canister cover (A).

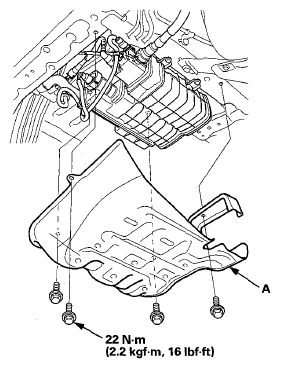

Fig 1: EVAP Canister Cover And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the EVAP canister vent shut valve 2P connector (A).
Remove the cap (B).

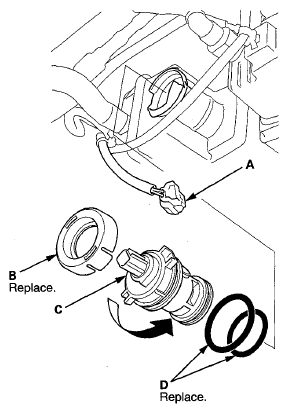

Fig 2: Removing EVAP Canister Vent Shut Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister vent shut valve (C).
Install the parts in the reverse order of removal with new O-rings (D) and a new cap.

NOTE: Do not coat the O-rings with oil.
