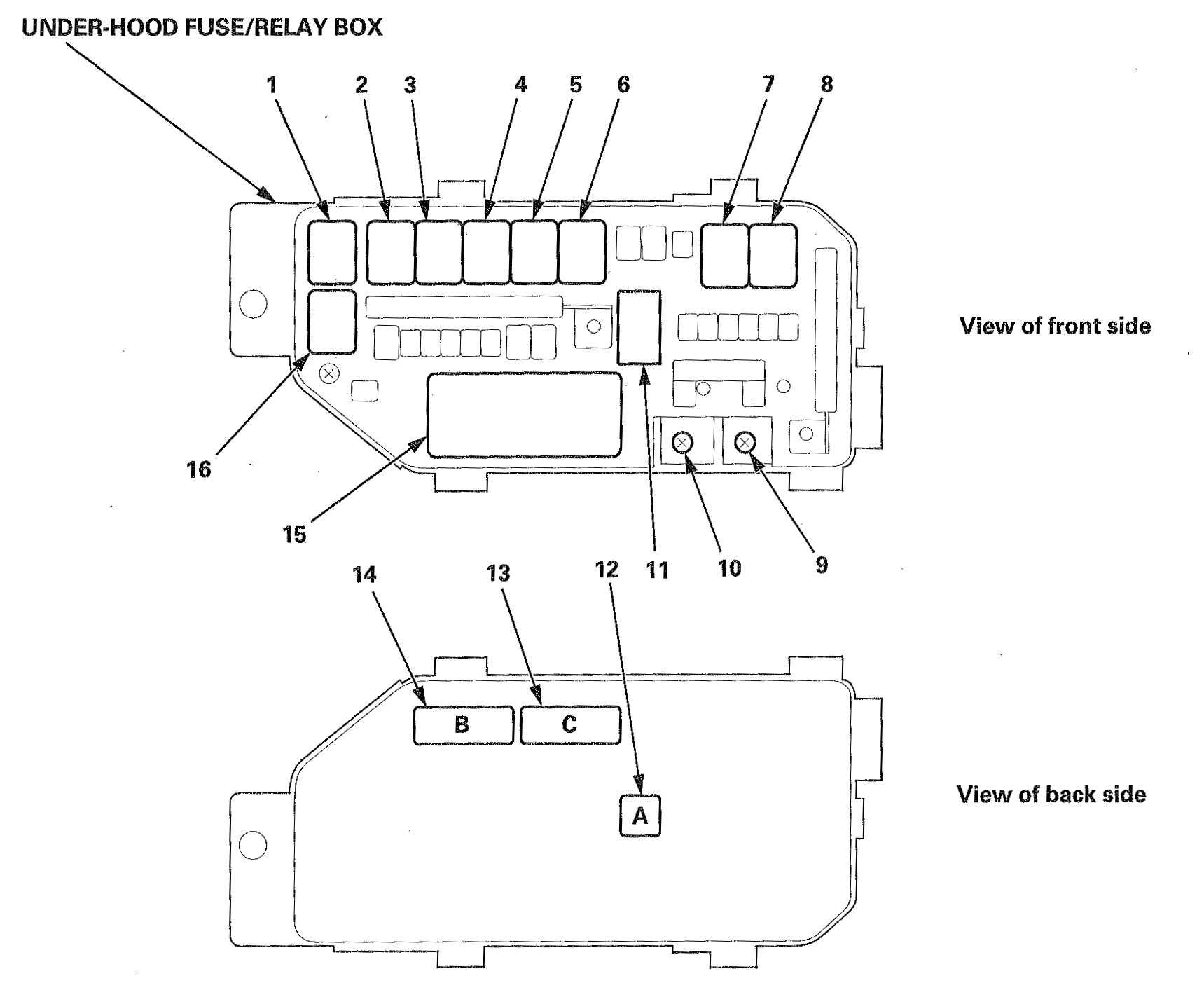

Under-hood Fuse/Relay Box
TERMINAL REFERENCE CHART
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (electrical load detector (ELD)) | 12 | 3 | Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| Electrical load detector (ELD) | 11 | 3 | Connector A (3P) | |
| A/C compressor clutch relay B A/C condenser fan relay |
16 2 |
4 4 |
|
|
| B (relay circuit board) | 14 | 14 | Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| Blower motor relay | 1 | 4 | ||
| C (relay circuit board) | 13 | 5 | Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| Electronic throttle control system (ETCS) control relay | 6 | 4 | ||
| Ignition coil relay | 5 | 4 | ||
| PGM-FI main relay 1 (FI MAIN) | 3 | 4 | ||
| PGM-FI subrelay | 4 | 4 | ||
| A/C condenser fan relay | 2 | 4 | ||
| Rear window defogger relay | 8 | 4 | ||
| Relay circuit board | 15 | Connector B (14P) and C (5P) | ||
| Starter cut relay 2 | 7 | 4 | ||
| T101 | 9 | - | Starter cable, M/T (see STARTER CABLE (M/T) ), A/T (see STARTER CABLE (A/T) ) | |
| T102 | 10 | - | Engine wire harness (Engine section) (see CONNECTOR TO HARNESS INDEX ) |
