Alternator Removal and Installation: Installation

Install the alternator, then tighten the mounting bolt (A) and the alternator bracket mounting bolt (B)

Fig 1: Alternator Bracket Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bolt (A) securing the harness holder

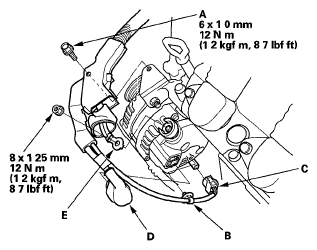

Fig 2: Alternator Connector, Positive Alternator Cable And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the harness clamp (B) to the alternator and connect the A/C compressor clutch connector (C) to the A/C compressor
Connect the alternator connector (D) and the positive alternator cable (E) to the alternator Make sure the crimped side of the ring terminal faces away from the alternator when you connect it
Install the drive belt (see DRIVE BELT REPLACEMENT )
Install the A/C condenser fan shroud assembly (A), then install the coolant reservoir (B)

Fig 3: A/C Condenser Fan Shroud Assembly And Coolant Reservoir With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on the lift
Tighten the A/C condenser fan shroud mounting bolts (A)

Fig 4: A/C Condenser Fan Motor Connector And A/C Condenser Fan Shroud Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the A/C condenser fan motor connector (B) and install the harness clamp (C)
Install the splash shield (see FRONT SPLASH SHIELD REPLACEMENT )
Lower the vehicle on the lift
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
Install the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT )
