Front Passenger's Power Window Switch Replacement

  1. Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the 14P connector from the front passenger's power window switch.
  2. Remove the power window switch panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  3. Remove the three mounting screws and the front passenger's power window switch (A).

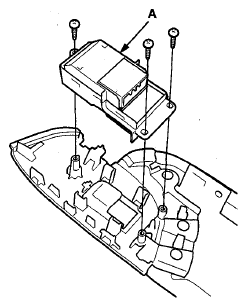

    Fig 1: Identifying 14P Connector On Front Passenger's Power Window Switch
    G08055431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the switch in the reverse order of removal.
  5. Reset the power window control unit
