Front Passenger's Power Window Switch Test

Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the 14P connector from the front passenger's power window switch.

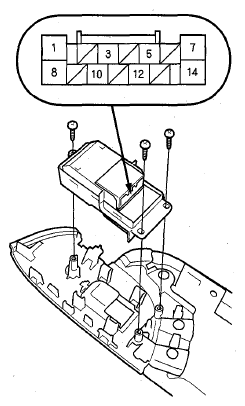

Fig 1: Identifying 14P Connector On Front Passenger's Power Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

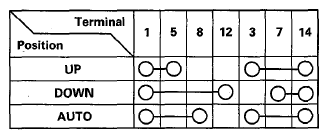

Fig 2: Identifying Terminals Switch Position Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch
