Fuel Fill Pipe Removal/Installation

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Drain the fuel tank (see FUEL TANK DRAINING ).
Remove the fuel fill cap.
Remove the rear fender cover (see REAR INNER FENDER REPLACEMENT ).
Disconnect the fuel fill tube (A) and the quick-connect fitting (B).

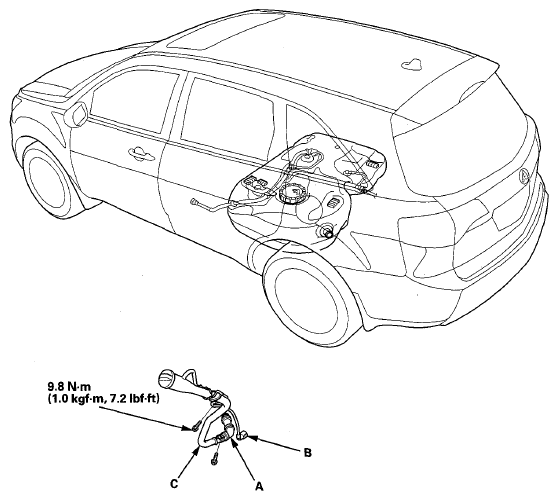

Fig 1: Identifying Fuel Fill Tube, Pipe And Quick-Connect Fitting
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel fill pipe (C).
Install the parts in the reverse order of removal.
