Fuel Pump Control Module Replacement

Remove the cargo floor lid (see step 1 under TRIM REMOVAL/INSTALLATION - CARGO AREA ).
On models with blind spot information (BSI), remove the BSI unit (see BSI CONTROL UNIT REMOVAL/INSTALLATION ) and/or the active damper control unit (see ACTIVE DAMPER CONTROL UNIT REPLACEMENT ).
Disconnect the fuel pump control module connector (A).

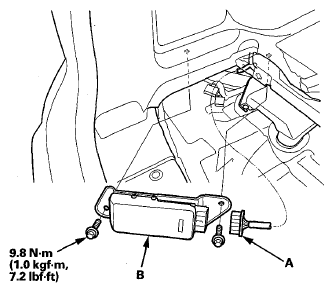

Fig 1: Identifying Fuel Pump Control Module Connector And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel pump control module (B).
Install the parts in the reverse order of removal.
