Component Location Index

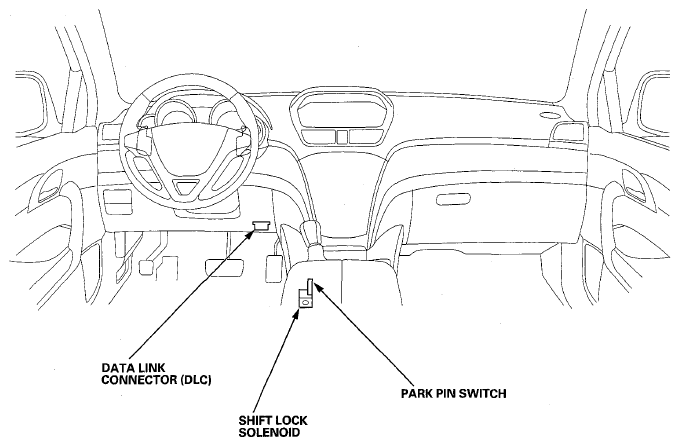

Fig 1: Identifying Automatic Transmission Components Location (1 Of 2)
G08057202Courtesy of AMERICAN HONDA MOTOR CO., INC.

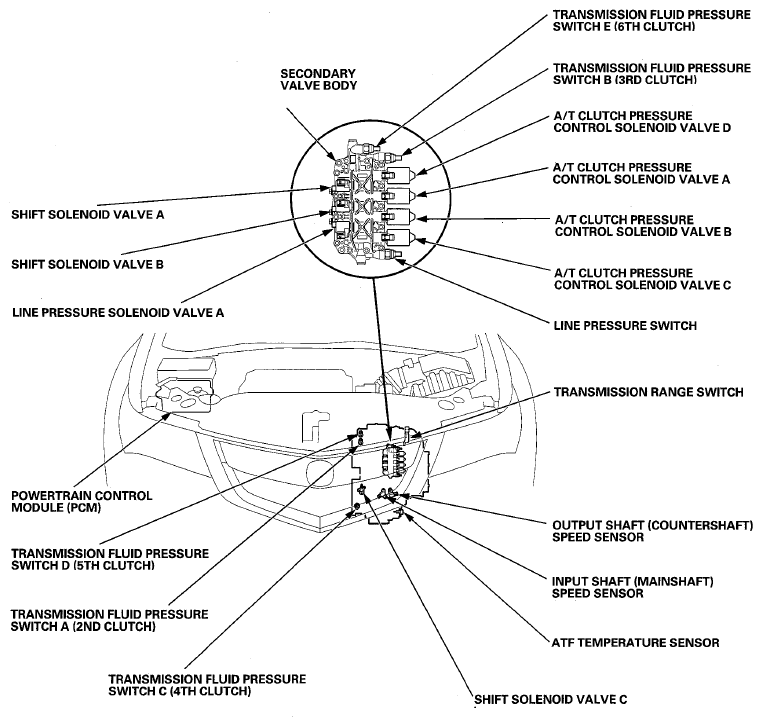

Fig 2: Identifying Automatic Transmission Components Location (2 Of 2)
G08057203Courtesy of AMERICAN HONDA MOTOR CO., INC.

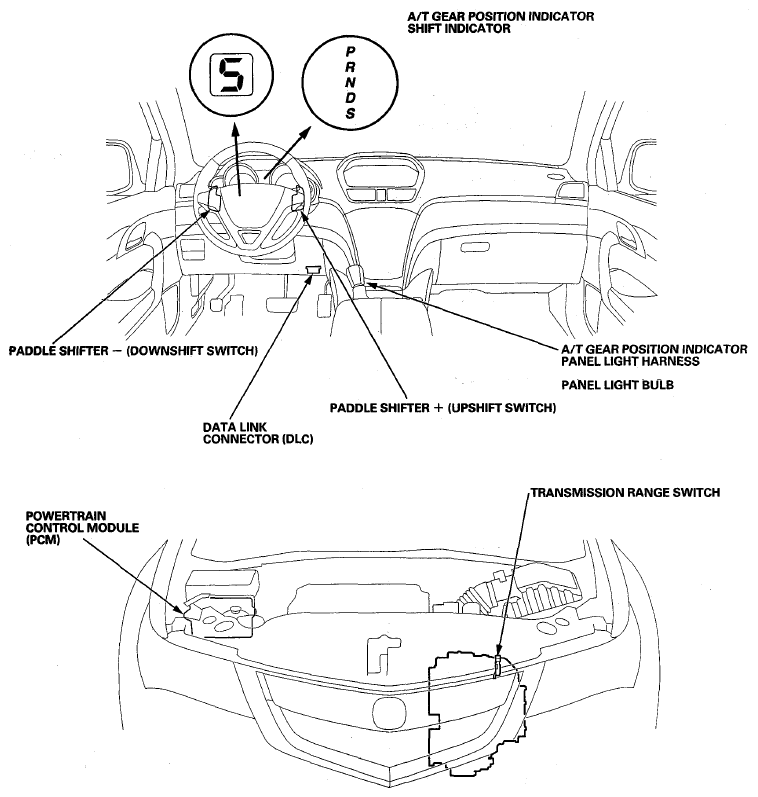

Fig 1: Identifying A/T Gear Position Indicator Components Location
G08057532Courtesy of AMERICAN HONDA MOTOR CO., INC.

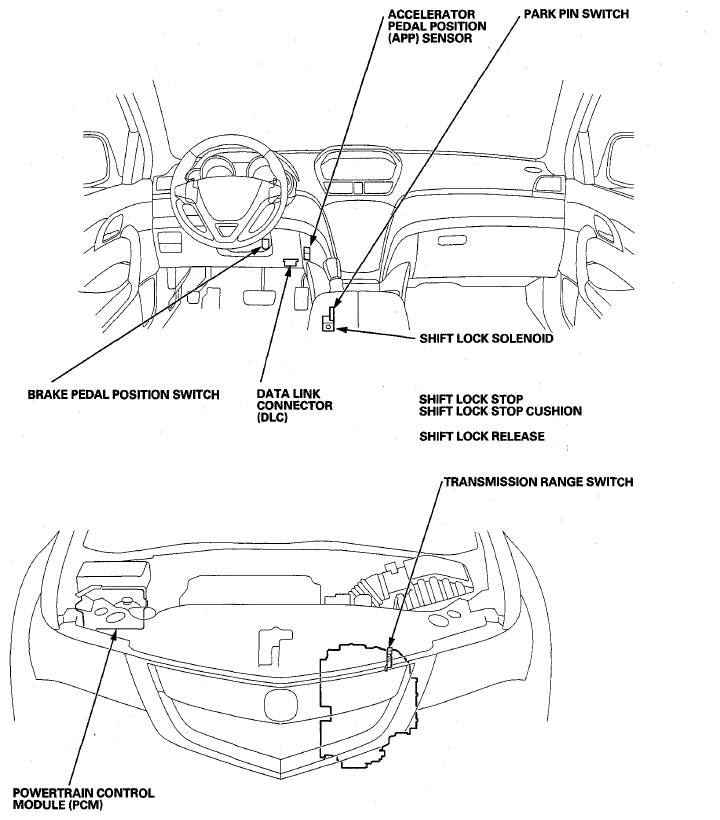

Fig 1: Locating A/T Interlock System Components Location
G08057566Courtesy of AMERICAN HONDA MOTOR CO., INC.

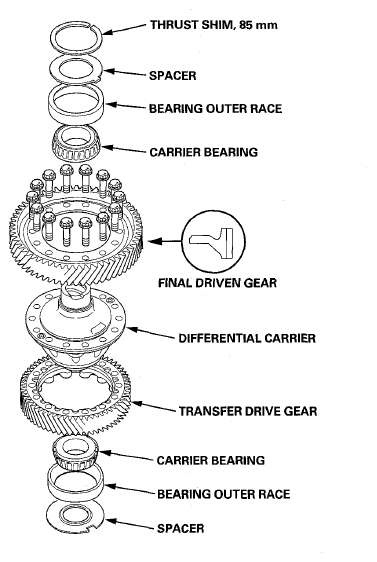

Fig 1: Identifying A/T Differential Components Location
G08057736Courtesy of AMERICAN HONDA MOTOR CO., INC.

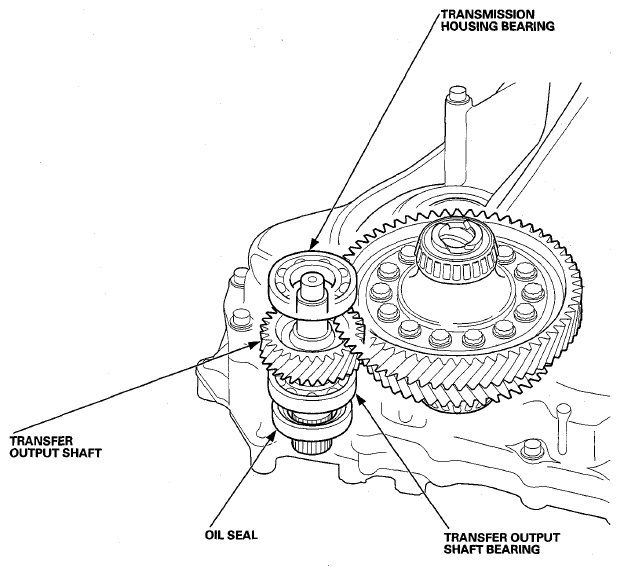

Fig 1: Identifying Transfer Output Shaft Components Location
G08057756Courtesy of AMERICAN HONDA MOTOR CO., INC.

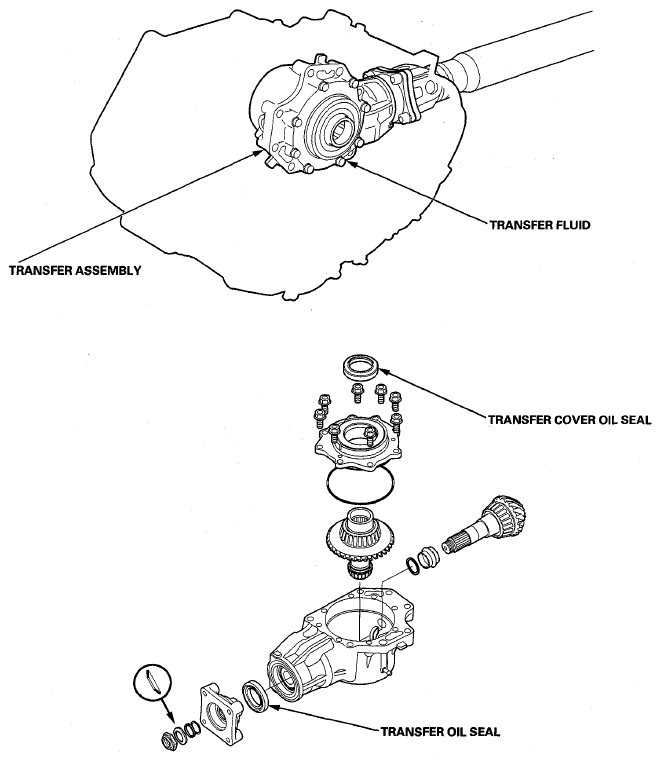

Fig 1: Identifying Transfer Assembly Components Location
G08057766Courtesy of AMERICAN HONDA MOTOR CO., INC.
