Programming and Relearning

Remote Registration and Reprogramming for Keyless Access System and Immobilizer System

Keyless Access System

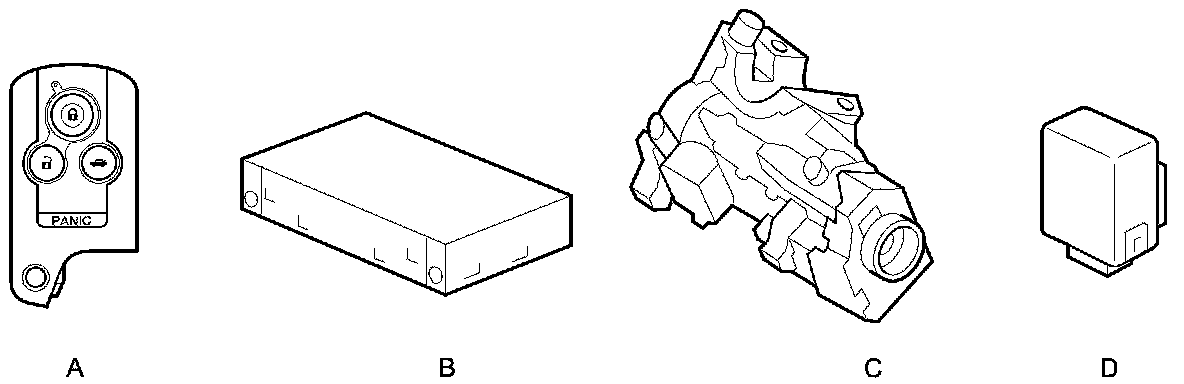

Registration by the HDS is necessary when:

- Any of the remotes (A) are replaced.
- All of the remotes (A) are replaced.
- A new remote (A) is added.
- New remotes (A) are added.
- The keyless access control unit (B) is replaced.
- The ignition switch control unit (C) is replaced.
- The imoes unit (D) is replaced.
- Deleting the registration of a lost remote(s).
- The PCM is replaced.

NOTE: The keyless access control unit can store up to six remotes.






Immobilizer System

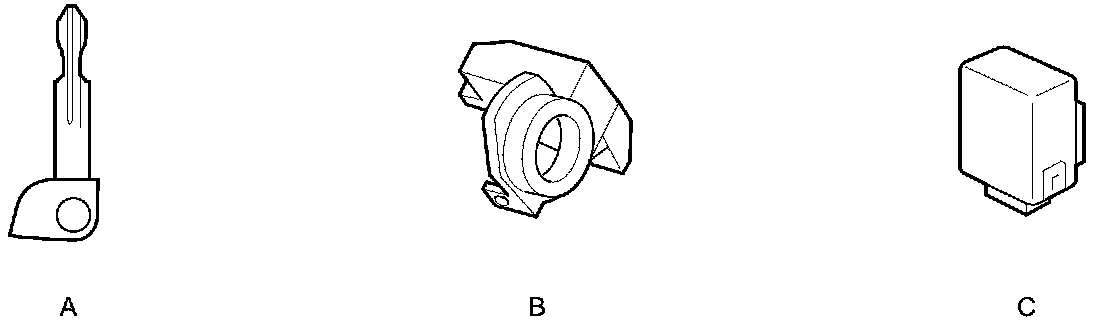

Registration by the HDS is necessary when:

- A built-in key (A) is added or replaced.
- The immobilizer control unit-receiver (B) is replaced.
- The imoes unit (C) is replaced.
- The PCM is replaced.

NOTE: The immobilizer control unit-receiver can store up to six built-in keys.






Registration

1. Turn the ignition switch to ON (II) with the built-in key.

2. Connect the HDS to the data link connector.

3. Select KEYLESS ACCESS or IMMOBILIZER (depending on the part replaced)* from the SYSTEM SELECT menu.






4. Enter TEST MODE menu, then select suitable menu from the HDS indications.
