Memory Positioning Switch: Service and Repair

Driving Position Memory Switch Test/Replacement

1. Remove the driver's door panel Front Door Panel Removal/Installation.

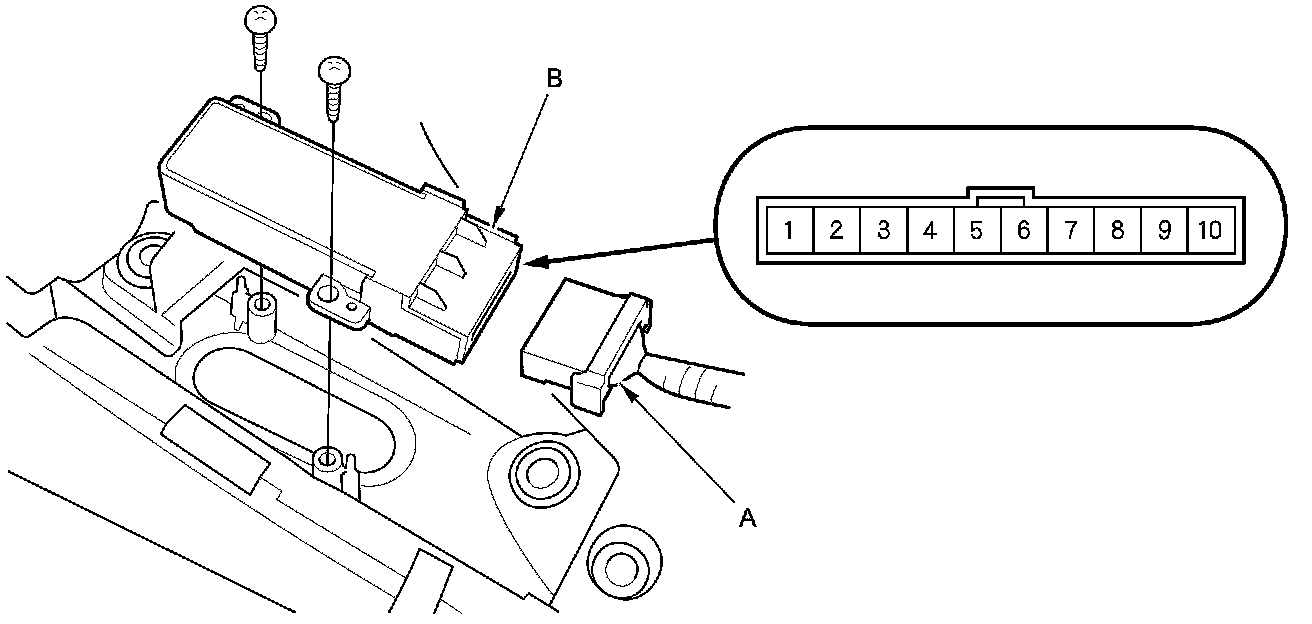

2. Disconnect the 10P connector (A) from the driving position memory switch (B).





3. Remove the two screws, then remove the switch from the door panel.

4. Check for continuity between the terminals in each switch position according to the table.





5. If the continuity is not as specified, replace the switch.
