Power Tilt/Telescopic Steering Switch Test/Replacement

  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), and the driver's dashboard lower cover (see INSTRUMENT FASCIA REMOVAL/INSTALLATION ), then remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Disconnect the 13P connector (A) from the power tilt/telescopic steering switch (B).

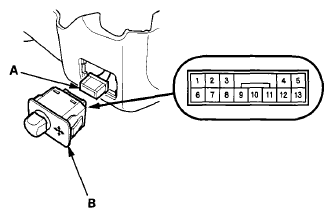

    Fig 1: Disconnecting 13P Connector From Power Tilt/ Telescopic Steering Switch
    G07363727Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.

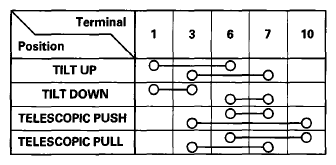

    Fig 2: Terminals Positions Reference Chart
    G07363728Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the switch.
