Horn Test/Replacement

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (A) from each horn (B).

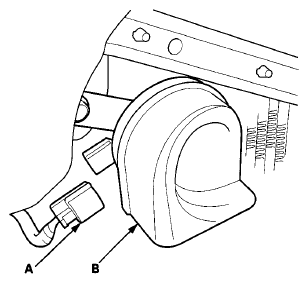

    Fig 1: Disconnecting 1P Connector From Each Horn
    G07354902Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the horn by connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.
    Fig 2: Identifying Bracket
    G07354903Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If it fails to sound, replace it.
