RFC Unit Replacement

  1. Remove the upper grille cover (see UPPER GRILLE COVER REPLACEMENT ).
  2. Disconnect the fan motor connectors (A), the 3P connector (B) and the 1P connector (C) from the RFC unit.

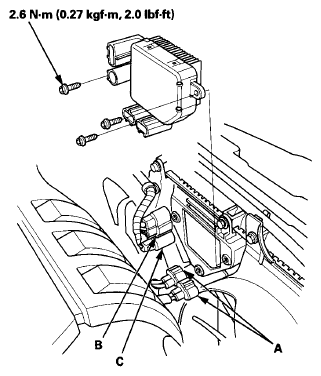

    Fig 1: Disconnecting Fan Motor Connectors 3P Connector And 1P Connector From RFC Unit With Torque Specifications
    G07353778Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the RFC unit from the radiator fan shroud.
    NOTE: When removing the RFC unit mounting screws take care not to damage the screw heads.
  4. Install the RFC unit in the reverse order of removal.
