EVAP Canister Vent Shut Valve Replacement

Remove the trunk front trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
Remove the access panel (A) from the floor.

Fig 1: Removing Access Panel From Floor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

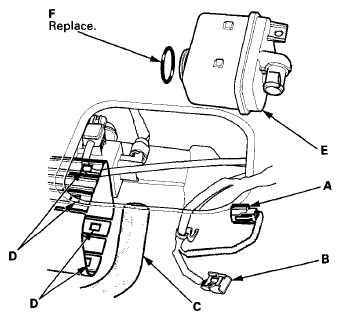

Disconnect the EVAP canister vent shut valve connector (A), FTP sensor connector (B), and the hose (C).

Fig 2: Disconnecting EVAP Canister Vent Shut Valve Connector, FTP Sensor Connector And Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pry the lock tabs (D) outward, and remove the EVAP canister vent shut valve (E).
NOTE: Be careful not to damage the lock tabs.
Install the parts in the reverse order of removal with a new O-ring (F).
NOTE: Do not coat the new O-ring with oil or other lubricants.
