DTC U0122: F-CAN Malfunction (PCM-VSA Modulator-Control Unit)
- Turn the ignition switch to ON (II).
- Check for Pending or Confirmed DTCs with the HDS.
Are DTC U0029 and U0122 indicated at the same time?
YES -Go to the troubleshooting for DTC U0029 (see DTC U0029: F-CAN MALFUNCTION (BUS-OFF - PCM) ).
NO -Go to step 3.
- Clear the DTC with the HDS.
- Check for Pending or Confirmed DTCs with the HDS.
Is DTC U0122 indicated?
YES -Go to step 5.
NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the VSA modulator-control unit and the PCM.
- Check for communication to the VSA system with the HDS.
Does the HDS communicate with the VSA modulator-control unit?
YES -Go to step 6.
NO -Go to the DLC CIRCUIT TROUBLESHOOTING .
- Turn the ignition switch to LOCK (0).
- Jump the SCS line with the HDS.
- Disconnect the VSA modulator-control unit 36P connector.
- Disconnect PCM connector A (49P).

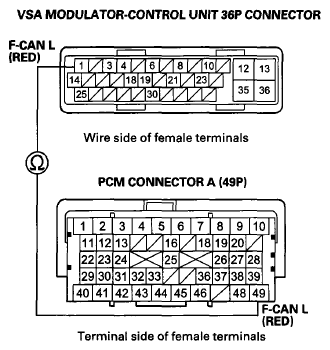

- Check for continuity between PCM connector terminal A48 and VSA modulator-control unit 36P connector terminal No. 14.Fig 1: Checking Continuity Between PCM Connector Terminal A48 And VSA Modulator-Control Unit 36P Connector Terminal No. 14
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 11.
NO -Repair an open in the wire between the PCM (A48) and the VSA modulator-control unit, then go to step 12.
- Check for continuity between PCM connector terminal A49 and VSA modulator-control unit 36P connector terminal No. 1.Fig 2: Checking Continuity Between PCM Connector Terminal A49 And VSA Modulator-Control Unit 36P Connector Terminal No. 1
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Update the VSA modulator-control unit if it does not have the latest software (see VSA MODULATOR-CONTROL UNIT UPDATE ), or substitute a known-good VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ), then go to step 12 and recheck. If DTC U0122 is not indicated after substitution, replace the original VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ), then go to step 12.
NO -Repair an open in the wire between the PCM (A49) and the VSA modulator-control unit, then go to step 12.
- Reconnect all connectors.
- Turn the ignition switch to ON (II).
- Reset the PCM with the HDS.
- Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).
- Check for Pending or Confirmed DTCs with the HDS.
Is DTC U0122 indicated?
YES -Check for poor connections or loose terminals at the VSA modulator-control unit and the PCM, then go to step 1.
NO -Troubleshooting is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC'S TROUBLESHOOTING .
