Component Location Index

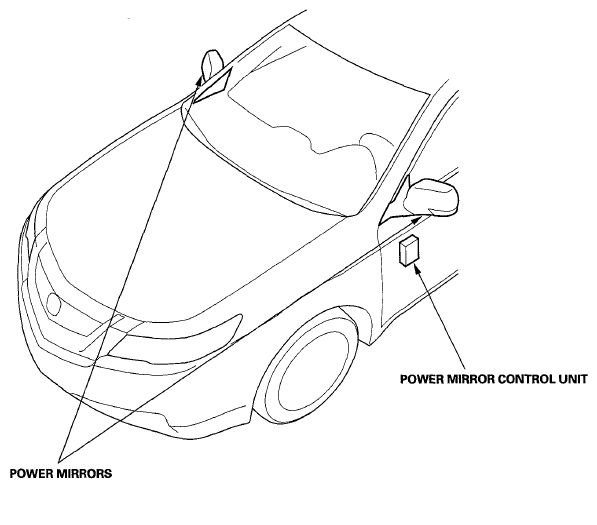

Fig 1: Identifying DPMS Component Locations (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying DPMS Component Locations (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

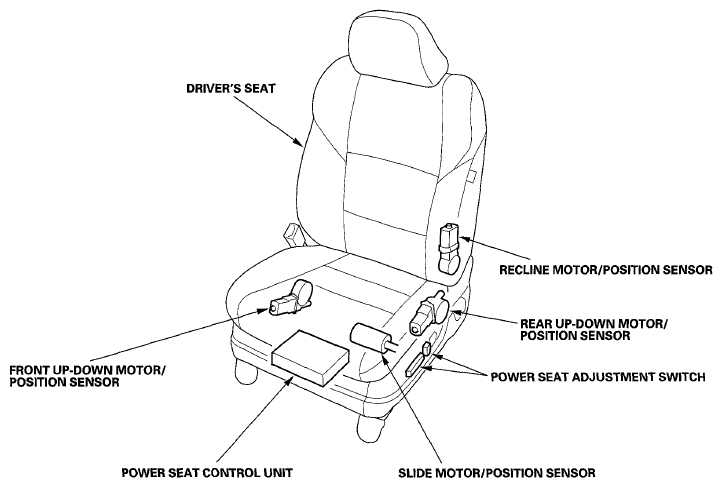

Fig 3: Identifying DPMS Component Locations (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
