DTC B1830: Left Mirror Position Sensor Malfunction

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A )
  1. Clear the DTC with the HDS
  2. Turn the ignition switch to LOCK (0), and then back to ON (II), or press the engine start/stop button to select the OFF mode and then the ON mode
  3. Operate the left power mirror in each direction with the power mirror switch
  4. Check for DTCs with the HDS

    Is DTC B1830 indicated?

    YES  -Go to step 5

    NO  -Intermittent failure, the system is OK at this time

  5. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode
  6. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
  7. Disconnect the power mirror control unit 24P connector
  8. Disconnect the left power mirror 16P connectors
  9. Check for continuity between body ground and left power mirror connector (16P) terminal No 6
    Fig 1: Checking Continuity Between Body Ground And Left Power Mirror Connector (16P) Terminal 6
    G05989222Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair short to ground in the wire

    NO  -Go to step 10

  10. Connect power mirror control unit connector (24P) terminal No 7 to body ground with a jumper wire

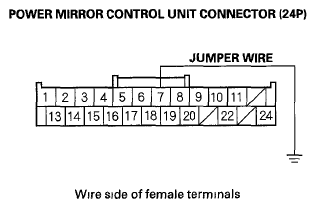

    Fig 2: Connecting Power Mirror Control Unit Connector (24P) Terminal 7 To Body Ground With Jumper Wire
    G05989223Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Check for continuity between body ground and left power mirror connector (16P) terminal No 6
    Fig 3: Checking Continuity Between Body Ground And Left Power Mirror Connector (16P) Terminal 6
    G05989224Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 12

    NO  -Repair open in the wire

  12. Check for continuity between body ground and left power mirror connector (16P) terminals No 8 and No 13
    Fig 4: Checking Continuity Between Body Ground And Left Power Mirror Connector (16P) Terminals 8 And 13
    G05989225Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair short to ground in the wire

    NO  -Go to step 13

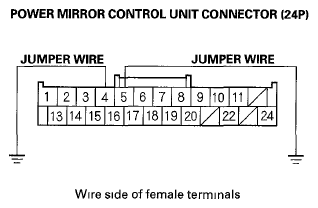

  13. Connect power mirror control unit connector (24P) terminals No 4 and No 5 to body ground with a jumper wire
    Fig 5: Connecting Power Mirror Control Unit Connector (24P) Terminals 4 And 5 To Body Ground With Jumper Wire
    G05989226Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Check for continuity between body ground and left power mirror connector (16P) terminals No 8 and No 13
    Fig 6: Checking Continuity Between Body Ground And Left Power Mirror Connector (16P) Terminals 8 And 13
    G05989227Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 15

    NO  -Repair open in the wire

  15. Check for continuity between body ground and power mirror control unit connector (24P) terminal No 6

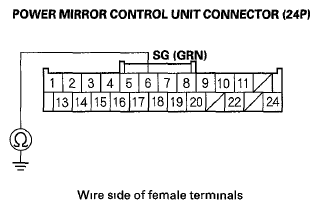

    Fig 7: Checking Continuity Between Body Ground And Power Mirror Control Unit Connector (24P) Terminal 6
    G05989228Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair short to ground in the wire

    NO  -Go to step 16

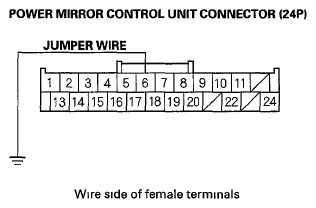

  16. Connect power mirror control unit connector (24P) terminal No 6 to body ground with a jumper wire
    Fig 8: Connecting Power Mirror Control Unit Connector (24P) Terminal 6 To Body Ground With Jumper Wire
    G05989229Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Check for continuity between body ground and left power mirror connector (16P) terminal No 7
    Fig 9: Checking Continuity Between Body Ground And Left Power Mirror Connector (16P) Terminal 7
    G05989230Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 18

    NO  -Repair open in the wire

  18. Reconnect the power mirror control unit connector (24P)
  19. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode
  20. Measure the voltage between power mirror control unit connector (24P) terminals No 6 and No 7
    Fig 10: Measuring Voltage Between Power Mirror Control Unit Connector (24P) Terminals 6 And 7
    G05989231Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 5 V?

    YES  -Faulty left power mirror position sensor, replace the power mirror actuator (see POWER MIRROR ACTUATOR REPLACEMENT )

    NO  -Substitute a known-good power mirror control unit, and recheck If DTC is gone, the original power mirror control unit is faulty, replace it (see POWER MIRROR CONTROL UNIT INPUT TEST/REPLACEMENT )
