Power Seat Adjustment Switch Test/Replacement

NOTE: SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION )
Remove the power seat adjustment switch knobs (A) and the recline cover from the driver's seat (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION ), then remove the two screws and the power seat adjustment switch (B)

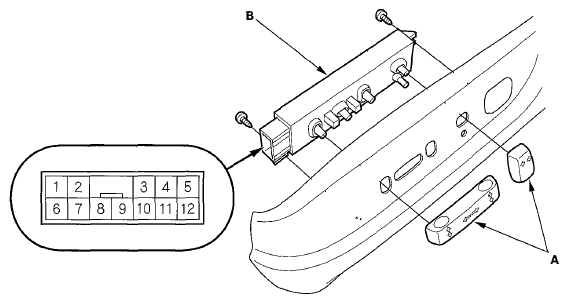

Fig 1: Identifying Power Seat Adjustment Switch Knobs And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 12P connector from the power seat adjustment switch
Reinstall the adjustment switch knobs to the switch
Check for continuity between the terminals in each position according to the table

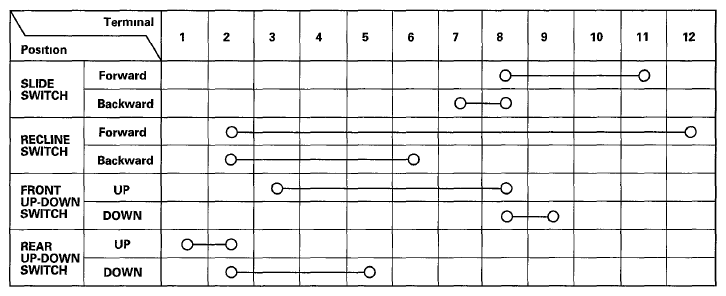

Fig 2: Switch Position Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch
