Memorized Position Recall with the Remotes

After the seat and mirror positions have been memorized, the seat and mirror will move to the position when the appropriate remote UNLOCK is pressed and the driver's door is opened When the seat and mirrors move to the memorized position, the green LED corresponding with that remote will stay lit until the position is changed or the key is turned to LOCK (0), or engine start/stop button is pressed to select the OFF mode

Without keyless access system

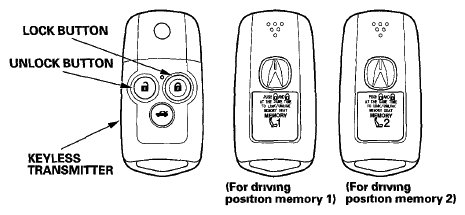

Fig 1: Identifying Remote Button Position (Without Keyless Access System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

With keyless access system

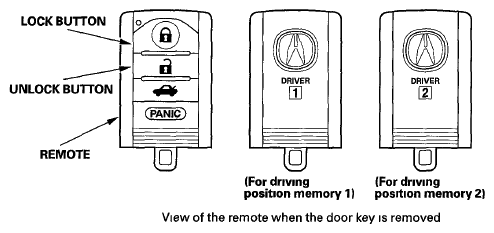

Fig 2: Identifying Remote Button Position (With Keyless Access System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
