Front Passenger's Power Window Switch Replacement

  1. Remove the passenger's door armrest (see step 12 on FRONT DOOR PANEL REMOVAL/INSTALLATION )
  2. Remove the two screws (A), then remove the bracket (B) from the armrest assembly (C)

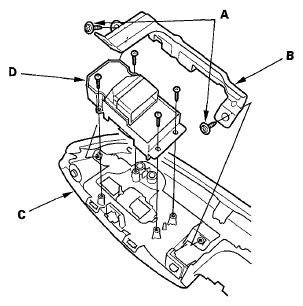

    Fig 1: Identifying Front Passenger's Power Window Switch And Screws
    G05989024Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four screws and the front passenger's power window switch (D)
  4. Install the switch in the reverse order or removal
  5. After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT )
