Rear Power Window Motor Test

Remove the rear door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION )
Test the rear power window motor in each direction by connecting battery power and ground to the rear power window switch 14P connector (A) according to the table

Fig 1: Rear Power Window Motor Terminals Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

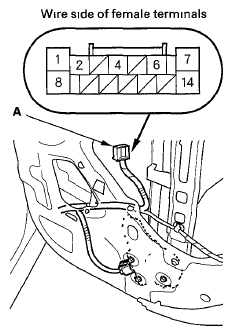

Fig 2: Identifying Rear Power Window Switch 14P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4
Disconnect the 2P connector (A) from the rear power window motor (B)

Fig 3: Identifying Rear Power Window Motor And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between rear power window switch 14P connector terminals No 1 and No 7, and rear power window motor 2P connector terminals No 1 and No 2 respectively There should be continuity
REAR POWER WINDOW SWITCH 14P CONNECTOR

Terminal No 1

Terminal No 7

REAR POWER WINDOW MOTOR 2P CONNECTOR

Terminal No 1

Terminal No 2

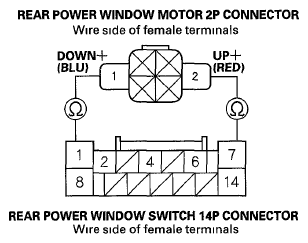

Fig 4: Checking Continuity Between Rear Power Window Switch 14P And Rear Power Window Motor 2P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If there is no continuity, repair open in the wires If the wire harness is OK, replace the rear power window motor
