Relays And Control Unit Locations: Dashboard: Notes

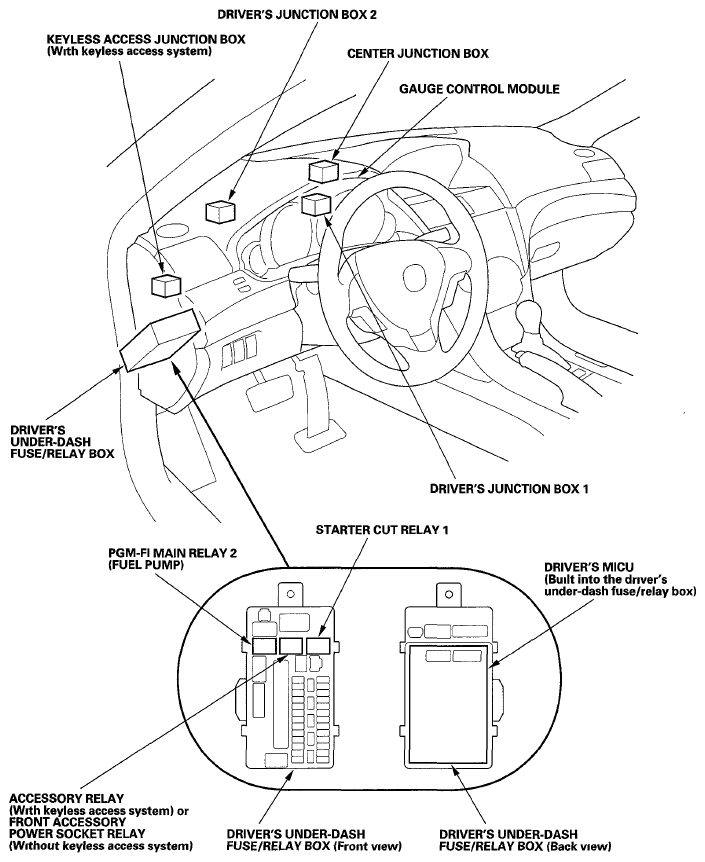

Fig 1: Identifying Relay And Control Unit Component Locations - Dashboard
G05988773Courtesy of AMERICAN HONDA MOTOR CO., INC.
