Without Keyless Access System

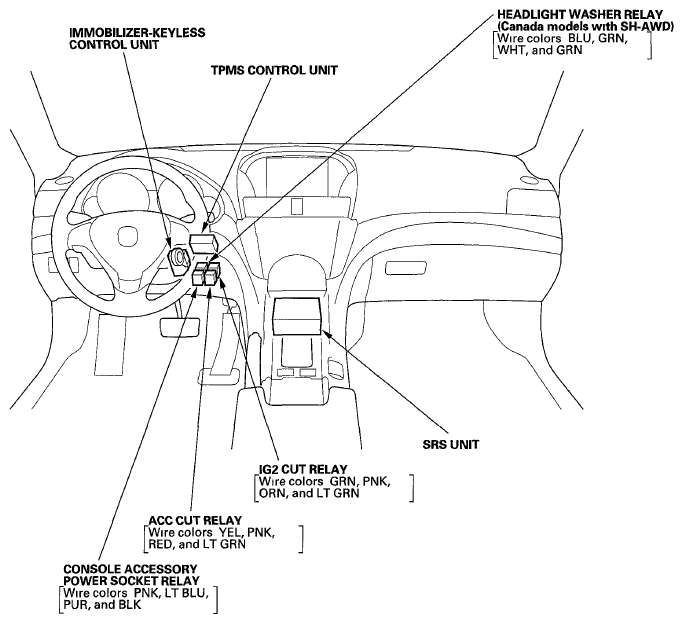

Fig 1: Identifying Relay And Control Unit Component Locations - Dashboard (Without Keyless Access System)
G05988775Courtesy of AMERICAN HONDA MOTOR CO., INC.
