Dashboard
>>
Without Navigation System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Without Navigation System

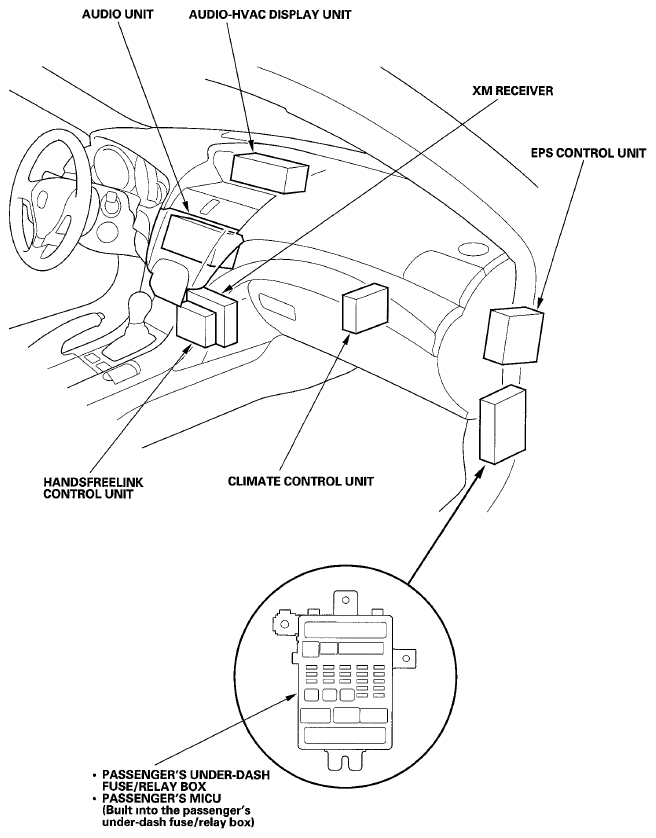

Fig 1: Identifying Relay And Control Unit Component Locations - Dashboard (Without Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
