Engine Compartment

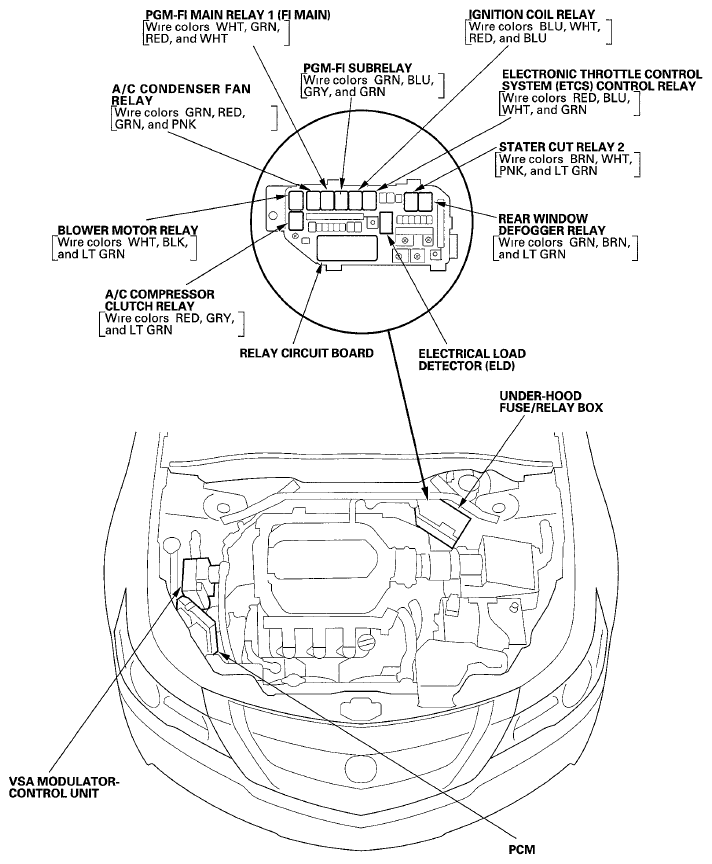

Fig 1: Identifying Relay And Control Unit Component Locations - Engine Compartment
G05988772Courtesy of AMERICAN HONDA MOTOR CO., INC.
