Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO data and transferring maintenance minder information from the gauge control module with the HDS (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE )

Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode
Adjust the steering column to full tilt down position and to the full telescopic pull position, then remove the instrument fascia (see INSTRUMENT FASCIA REMOVAL/INSTALLATION )
Remove the three screws from gauge control module (A), then pull the gauge control module out carefully

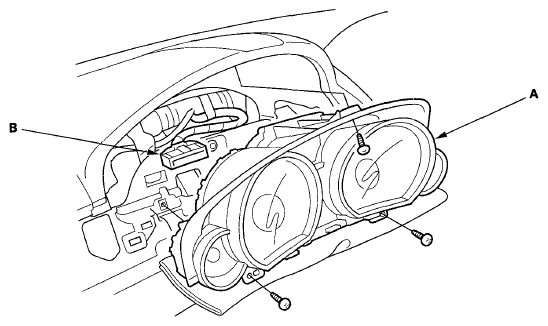

Fig 1: Identifying Gauge Control Module
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 32P connector (B) from the gauge control module
Install the gauge control module in the reverse order of removal
Write the ODO data and transferring maintenance minder data to a new gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE )
