M/T Model

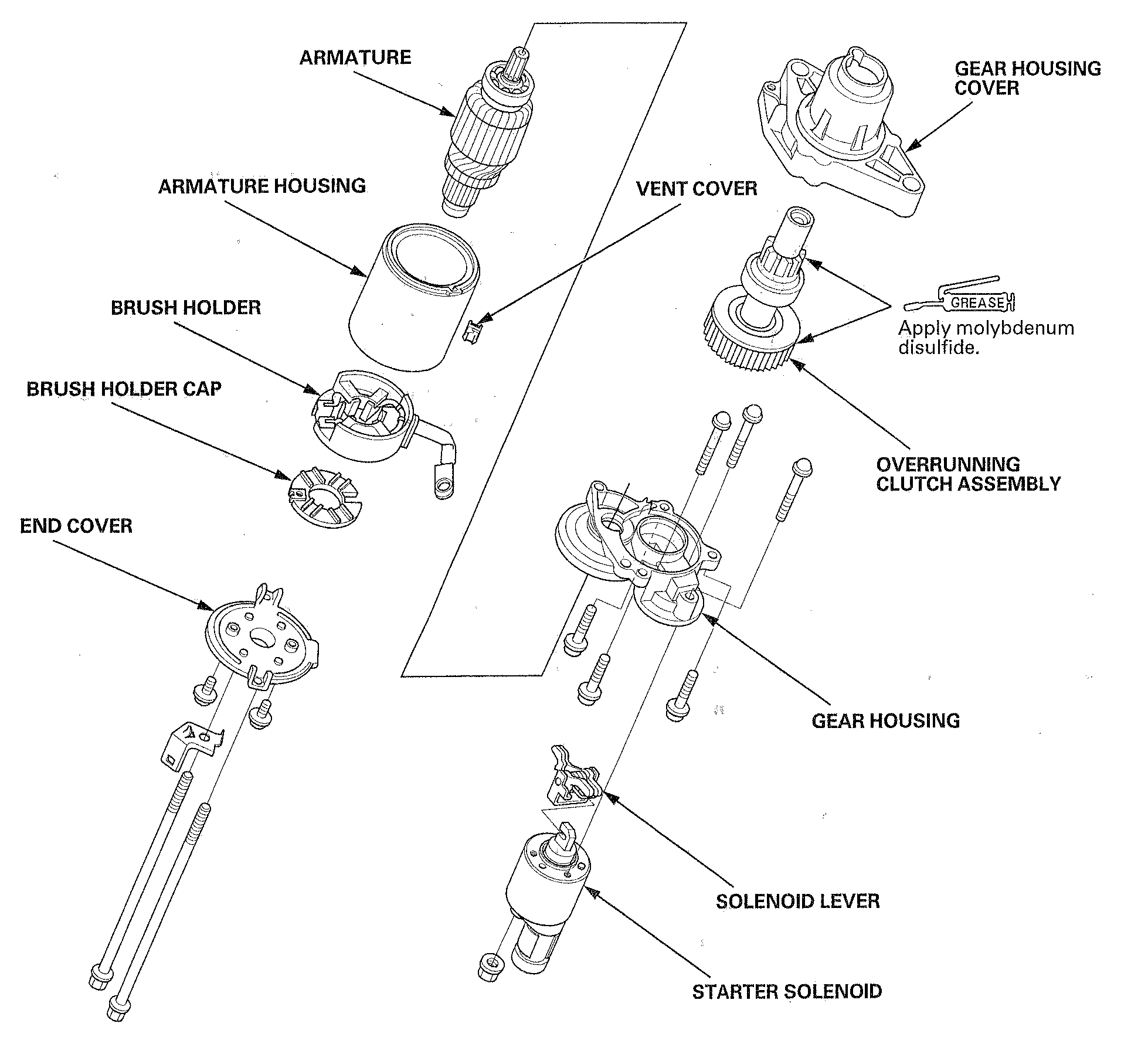

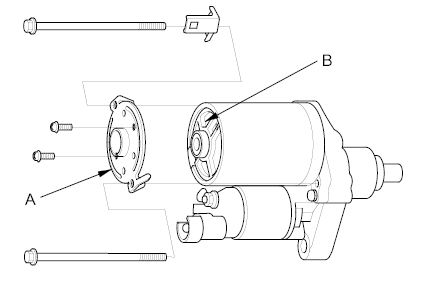

Fig 1: Exploded View Of Starter With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Brush Holder Removal

1. Remove the starter (see STARTER REMOVAL AND INSTALLATION )
2. Disconnect the motor wire from M terminal (see step 4 on STARTER SOLENOID TEST ), and remove the end cover
3. Remove the brush holder (A)

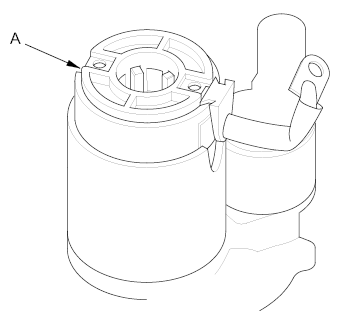

   Fig 2: Identifying Brush Holder

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Armature Inspection and Test

4. Inspect the armature for wear or damage from contact with the permanent magnet If there is wear or damage, replace the armature

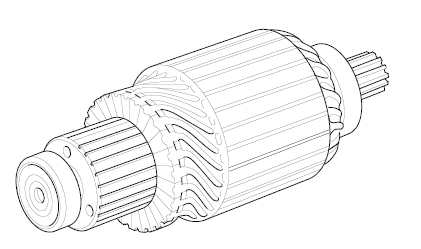

   Fig 3: Identifying Armature

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check the commutator (A) surface If the surface is dirty or burnt, resurface it with an emery cloth or a lathe to the specifications in step 8, or recondition with #500 or #600 sandpaper (B)

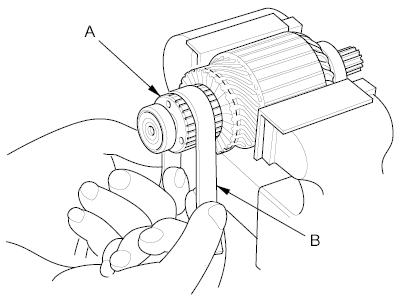

   Fig 4: Checking Commutator And Surface

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Check the commutator diameter with a digital caliper or dial type caliper. If the diameter is below the service limit, replace the armature

   Commutator Diameter

   Standard (New) 28.0-28.1 mm (1.102-1.106 in)

   Service Limit 27.5 mm (1.08 in)

   Fig 5: Checking Commutator Diameter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Measure the commutator (A) runout
   • If the commutator runout is within the service limit, check the commutator for carbon dust or brass chips between the segments
   • If the commutator runout is not within the service limit, replace the armature

   Commutator Runout

   Standard (New) 0 02 mm (0 001 in) max

   Service Limit 0 05 mm (0 002 in)

   Fig 6: Measuring Commutator Runout

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Use a digital caliper or dial type caliper to check the mica depth (A) If the mica depth is below the service limit, replace the armature

   Commutator Mica Depth

   Standard (New) 0.4-0.5 mm (0.16-0.20 in)

   Service Limit 0.15 mm (0.006 in)

   Fig 7: Identifying Commutator Mica Depth

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Use an ohmmeter to check for continuity between the segments of the commutator If there is an open circuit between any segments, replace the armature
   Fig 8: Checking Continuity Between Segments Of Commutator

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

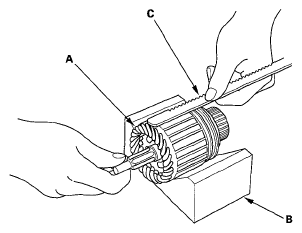

10. Place the armature (A) on an armature tester (B) Hold a hacksaw blade (C) on the armature core If the blade is attracted to the core while the core is turned, the armature is shorted Replace the armature
    Fig 9: Placing Armature On Armature Tester

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Use an ohmmeter to check for continuity between the commutator (A) and the armature coil core (B), and between the commutator and the armature shaft (C) If there is continuity, replace the armature
    Fig 10: Checking Continuity Between Commutator And Armature Coil Core

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Overrunning Clutch Inspection

    Starter Brush Inspection

12. Remove the brush holder cap (A) then remove the brushes (B)
Fig 11: Identifying Brushes
Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Measure the brush length If it is shorter than the service limit, replace the brush holder assembly

    Brush Length

    Standard (New) 15.8-16.2 mm (0.62-0.64 in)

    Service Limit 11.0 mm (0.43 in)

    Fig 12: Measuring Brush Length

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Starter Brush Holder Test

14. Check for continuity between the brushes (A) and brushes (B). If there is continuity, replace the brush holder assembly.

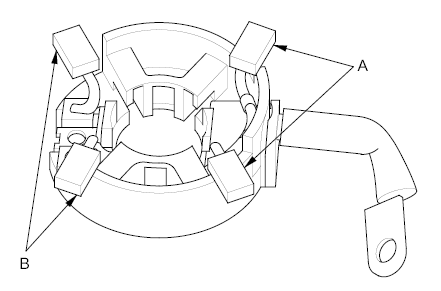

    Fig 13: Identifying Brushes

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

Overrunning Clutch Inspection

15. Slide the overrunning clutch along the shaft. Replace it if it does not slide smoothly.
16. Rotate the overrunning clutch (A) both ways. If it does not lock in either direction, or it locks in both directions, replace it

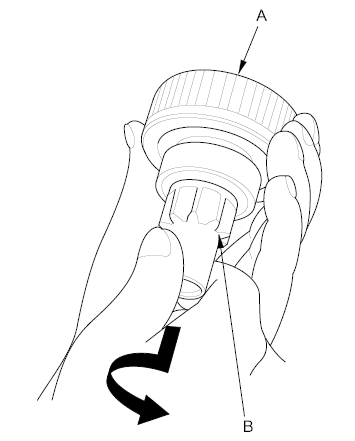

Fig 14: Turning Overrunning Clutch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
17. If the starter drive gear is worn or damaged, replace the overrunning clutch assembly, the gear is not available separately

    Check the condition of the flysheel ring gear to see if the teeth are damaged

Starter Reassembly

18. Install the armature in the housing
19. Set the brushes with the brush spring in the brush holder (A).
    Fig 15: Identifying Brush Holder

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
20. Place the brush holder assembly on the armature, then move the brush holder down to the armature
    NOTE: Keep the brush holder on the armature so the brushes do not come out of the brush holder

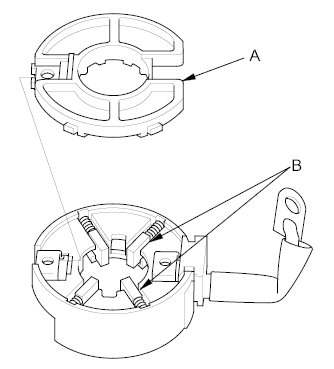

21. Install the end cover (A) to retain the brush holder (B).
    Fig 16: Identifying End Cover To Brush Holder

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Install the starter (see STARTER REMOVAL AND INSTALLATION )
