Component Location Index

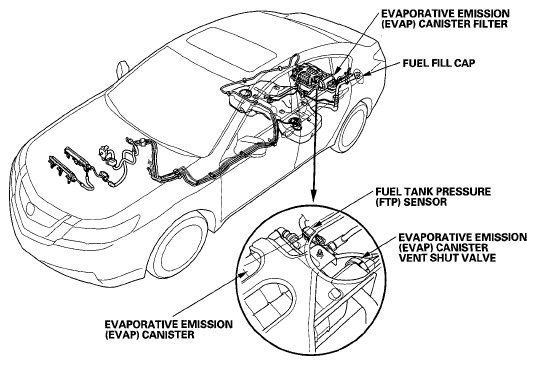

Fig 1: Identifying EVAP System Component Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without SH-AWD

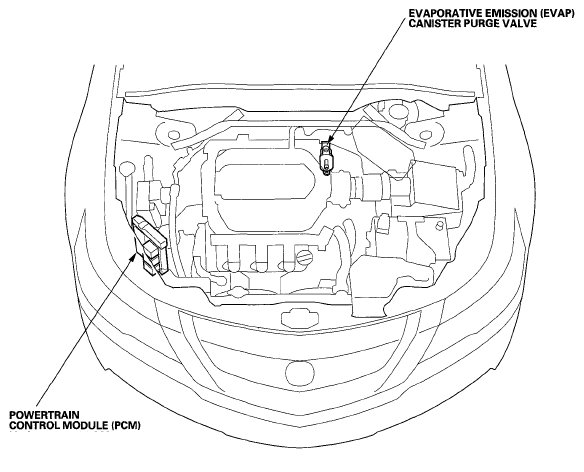

Fig 2: Identifying EVAP System Component Locations- Without SH-AWD

Courtesy of AMERICAN HONDA MOTOR CO., INC.

With SH-AWD

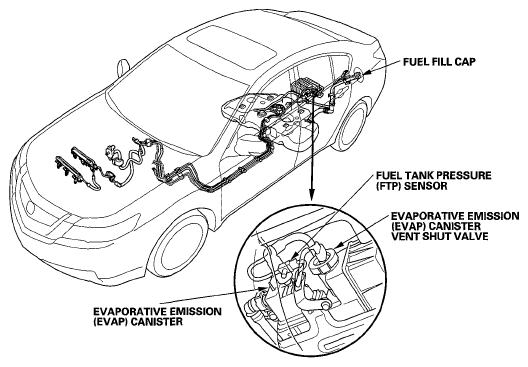

Fig 3: Identifying EVAP System Component Locations- With SH-AWD

Courtesy of AMERICAN HONDA MOTOR CO., INC.
