CKP Pulse Plate Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL )
  2. Remove the CKP pulse plate (A) from the crankshaft
    NOTE: Be careful not to damage the journals and the CKP pulse plate

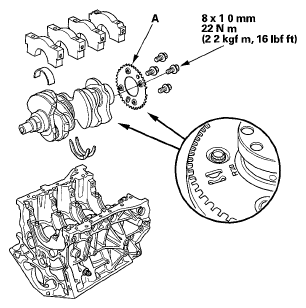

    Fig 1: CKP Pulse Plate With Torque Specification
    G05987080Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate in the reverse order of removal
