Connecting Rod Bearing Selection

Each connecting rod falls into one of four tolerance ranges (from 0 to 0.024 mm (0.0009 in), in 0.006 mm (0.0002 in) increments) depending on the size of its big end bore

It's then stamped with a number or bar (1,2,3, or 4/I, II, III, or Mil) indicating the range You may find any combination of 1,2,3, or 4/I, II, III, or IIII in any engine

Big End Bore Size

J35Z6 engine 58.0 mm (2.28 in)

J37A4 engine. 60.0 mm (2.36 in)

Inspect the connecting rod for cracks and heat damage

Big End Bore Code Locations

Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct bearings If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper Clean them only with solvent or detergent

Fig 1: Identifying Connecting Rod Journal Code Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

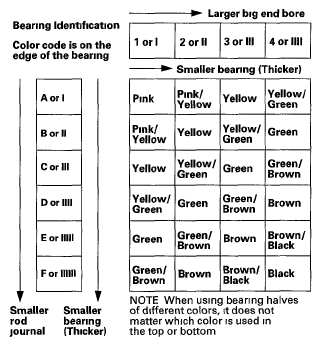

Fig 2: Bearing Color Code Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Connecting Rod Journal Code Locations (Letters or Bars)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
