DTC P0369: Camshaft Position (CMP) Sensor Circuit Intermittent Interruption: Notes

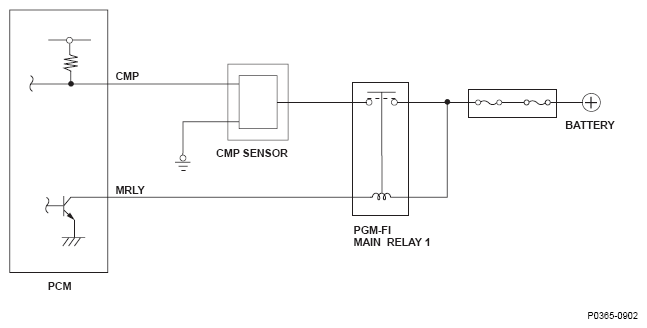

Fig 1: Camshaft Position (CMP) Sensor Circuit Intermittent Interruption - Circuit Diagram
G06123593Courtesy of AMERICAN HONDA MOTOR CO., INC.
