DTC P0461: Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Range/ Performance Problem: Notes

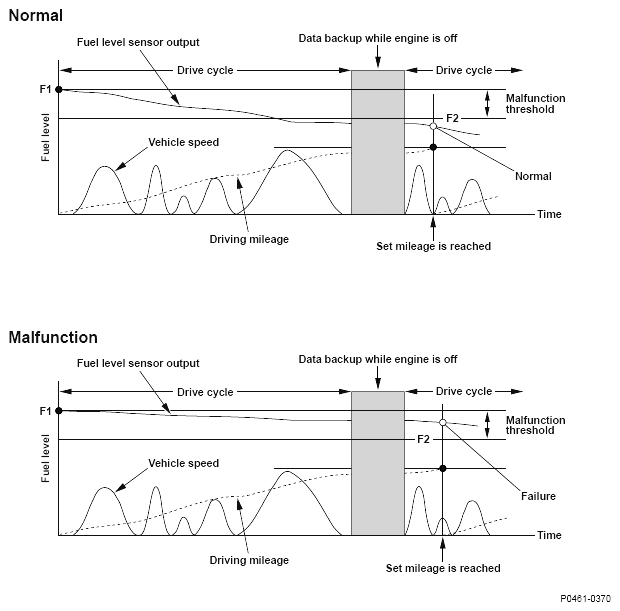

Fig 1: Fuel Level Sensor Performance Chart
G04836256Courtesy of AMERICAN HONDA MOTOR CO., INC.
