DTC P0706: Open in Transmission Range Switch Circuit: Notes

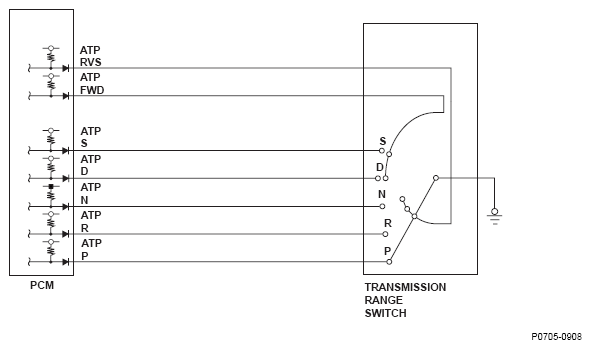

Fig 1: Open In Transmission Range Switch Circuit - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Transmission range switch contact point input matrix

SHIFT LEVER POSITION CHART

Shift lever position	Input per switch
	P	R	N	D	S	FWD	RVS
P	◦	X	X	X	X	X	◦
R	X	◦	X	X	X	X	◦
N	X	X	◦	X	X	X	◦
D	X	X	X	◦	X	◦	X
S	X	X	X	X	◦	◦	X
◦: Closed X: Open
