DTC P0977: Open in Shift Solenoid Valve B Circuit: Notes

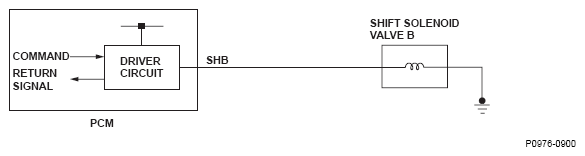

Fig 1: Open In Shift Solenoid Valve B Circuit - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

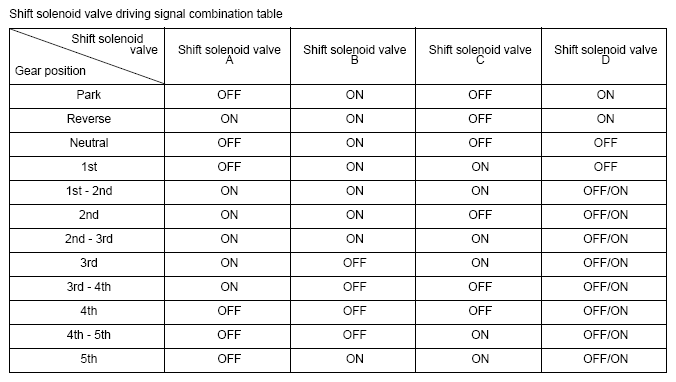

Shift solenoid valve driving signal combination table

Fig 2: Shift Solenoid Valve And Gear Position Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
