DTC P1744: Problem in Shift Control System; Shift Valve E Stuck ON: Notes

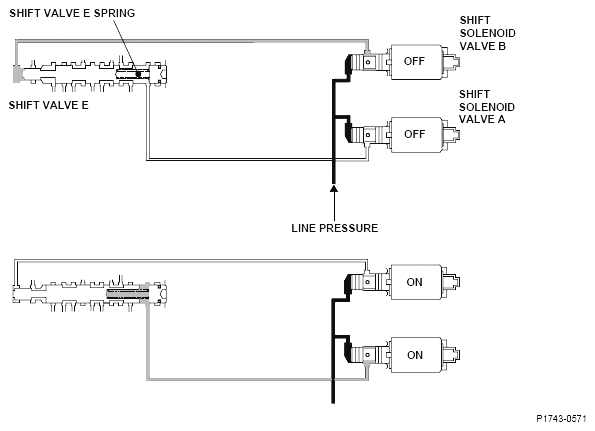

Fig 1: Problem In Shift Control System; Shift Valve E Stuck ON - Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

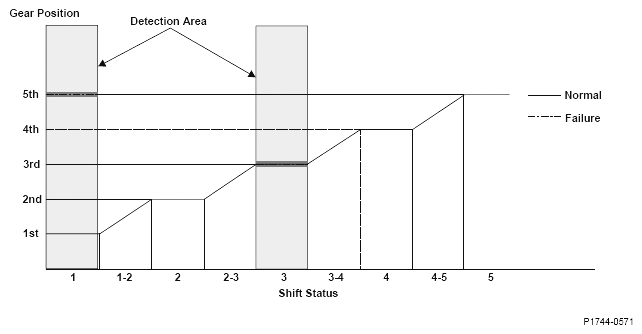

Fig 2: Gear Position Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

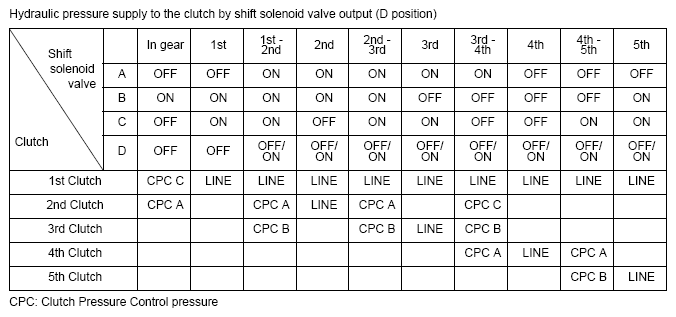

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

Fig 3: Shift Solenoid Valve And Clutch Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CPC: Clutch Pressure Control pressure
