Accelerator Pedal Module Removal and Installation: Installation

  1. Install the accelerator pedal pad (A) to the pedal stop (B) Slide the pad until it locks with a clicking sound
    Fig 1: Installing Accelerator Pedal Pad To Pedal Stop
    G05987528Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install a new clip (A)
    NOTE:
    • The clip must be replaced whenever the accelerator pedal module is installed
    • Make sure that the accelerator pedal module and the clip are secure

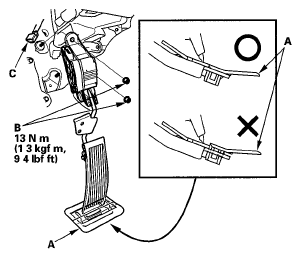

      • Fig 2: Installing Clip With Torque Specification
      G05987529Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the nuts (B), and connect the APP sensor 6P connector (C)
