TL Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel Supply System
>>
Component Location Index
>>
With SH-AWD
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With SH-AWD

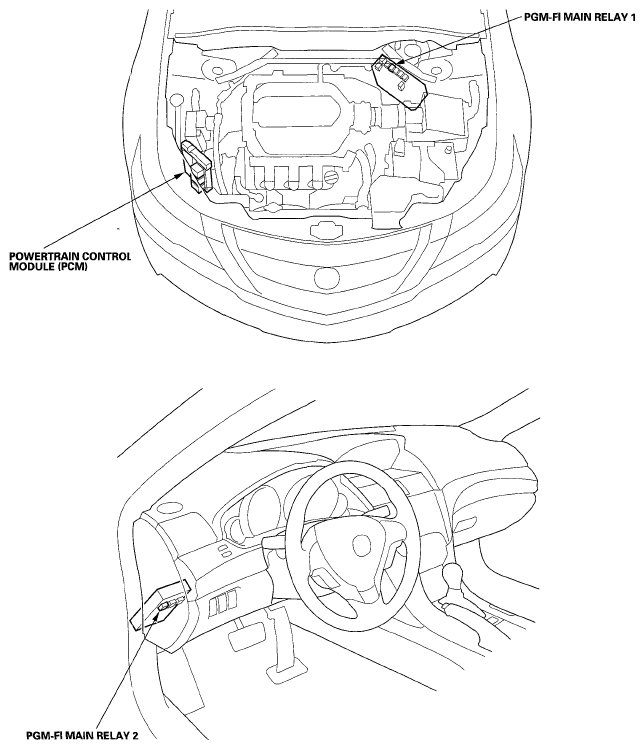

Fig 1: Identifying Fuel Supply System Component Locations - With SH-AWD
Courtesy of AMERICAN HONDA MOTOR CO., INC.

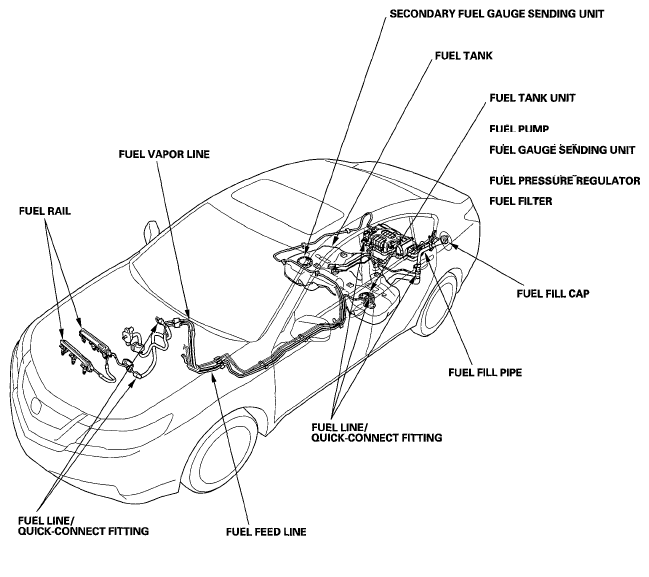

Fig 2: Identifying Fuel Supply System Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.

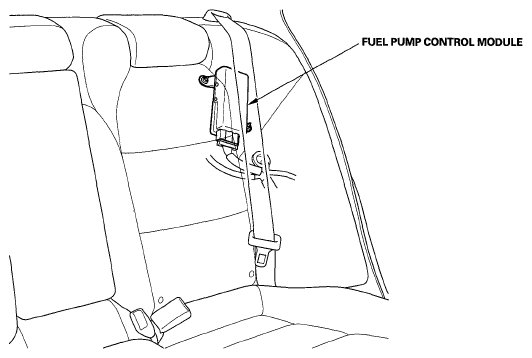

Fig 3: Identifying Fuel Supply System Component Locations - With SH-AWD ('09 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
