With SH-AWD

Check the fuel system lines and hoses for damage, leaks, and deterioration Replace any damaged parts

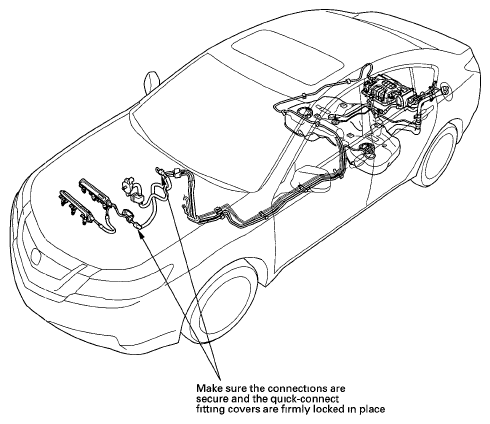

Fig 1: Identifying Fuel Line (With SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened

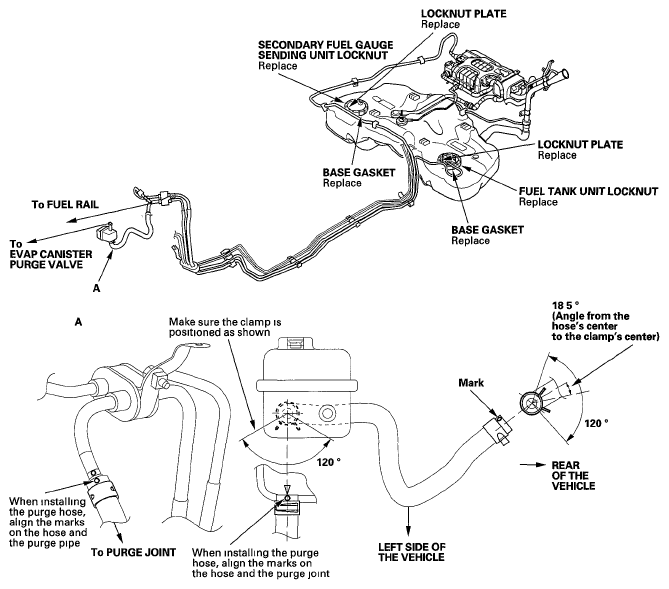

Fig 2: Identifying Fuel Line Components (With SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
