Without SH-AWD

NOTE: Before you work on the fuel lines and fittings, read the "Fuel Line/Quick-Connect Fitting Precautions" (see FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS )

Check the contact area (A) of the line (B) for dirt or damage, and clean it if needed

Fig 1: Identifying Contact Area Of Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after
- replacing the fuel rail
- replacing the fuel line
- replacing the fuel pump
- replacing the fuel filter
- replacing the EVAP canister
- replacing the fuel fill pipe
- replacing the fuel tank
- removing the retainer from the line
- Use the same manufacturer retainer and the same size retainer when the replacing the retainer (see FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS )
Fig 2: Inserting Retainer Into Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

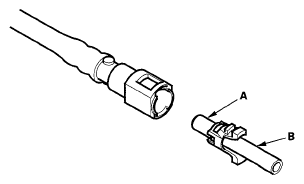

Before connecting a new fuel line/quick-connect fitting assembly (A), remove the old retainer (B) from the mating line

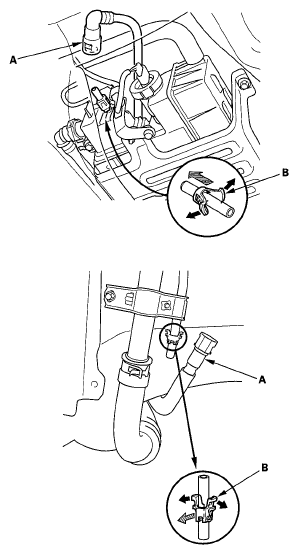

Fig 3: Identifying Fuel Line, Quick-Connect Fitting Assembly And Old Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

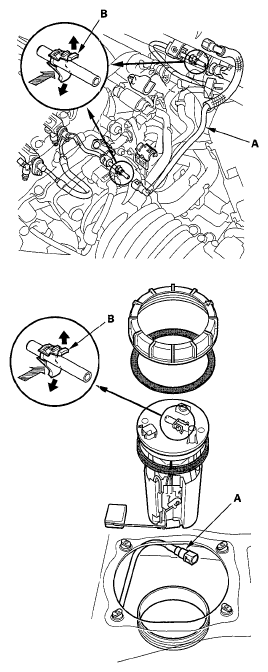

Fig 4: Identifying Fuel Line, Quick-Connect Fitting Assembly And Old Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the quick-connect fittings with the line (A), and align the retainer locking tabs (B) with the connector grooves (C) Then press the quick-connect fittings onto the line until both retainer tabs lock with a clicking sound
NOTE: If it is hard to connect, put a small amount of new engine oil on the line end

Connection with new retainer

Fig 5: Identifying Connection With Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connection to new fuel line

Fig 6: Identifying Connection To Fuel Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Reconnection to existing retainer

Fig 7: Identifying Reconnection To Existing Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When you reconnect the connector with the old retainer, make sure the connection is secure and the tabs (A) are firmly locked into place, check visually and also by pulling the connector (B) When you replace the fuel line with a new one, make sure you remove the ring pull (C) upwards after you confirm the connection is secure
NOTE: Before you remove the ring pull, make sure the fuel line connection is secure If the connection is not secure, the ring pull could break when you try to remove it

Fig 8: Checking Connector Connection
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connection to new fuel line

Fig 9: Identifying Connection To Fuel Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reconnect the negative cable to the battery, and turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode (but do not operate the starter motor) The fuel pump will run for about 2 seconds, and fuel pressure will rise Repeat this two or three times, then checking for fuel leaks
If equipped, install the quick-connect fitting cover Set the groove of the cover (A) on the fuel line (B) as shown, then install it Make sure the cover is firmly locked in place
