With SH-AWD

1. If equipped, remove the quick-connect fitting cover from the fuel line Raise the cover (A) from the fuel line (B), and remove it as shown
   Fig 1: Identifying Quick-Connect Fitting Cover And Fuel Line

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING )
3. Check the fuel quick-connect fittings (A) for dirt, and clean them if needed

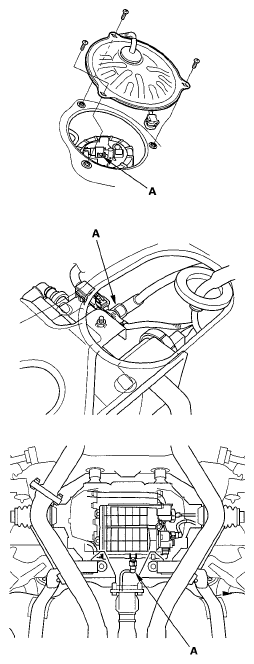

   Fig 2: Identifying Fuel Quick-connect Fittings Location

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   Fig 3: Identifying Fuel Quick-connect Fittings Location

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   Fig 4: Identifying Fuel Quick-connect Fittings Location

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

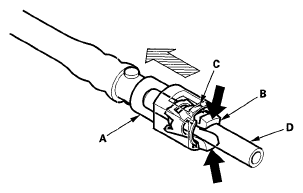

4. Place a rag or a shop towel over the quick-connect fitting Hold the connector (A) with one hand, and squeeze the retainer tabs (B) with the other hand to release them from the locking tabs (C) Pull the connector off
   NOTE:

   • Be careful not to damage the line (D) or other parts Do not use tools
   • If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily
   • Do not remove the retainer from the line, once removed, the retainer must be replaced with a new one

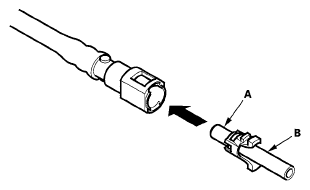

   Fig 5: Identifying Contact Area Of Line
   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check the contact area (A) of the line (B) for dirt or damage
   • If it is dirty, clean the connector, and dry it with the compressed air
   • If it is damaged, replace the fuel filter or the fuel feed line
   Fig 6: Identifying Retainer Location
   Courtesy of AMERICAN HONDA MOTOR CO., INC.

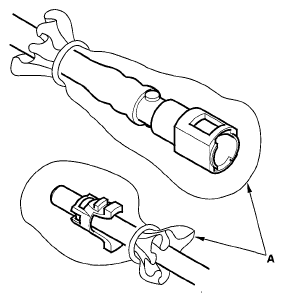

6. To prevent damage and keep foreign matter out, cover the disconnected connector and line ends with plastic bags (A)

Replace the retainer when

• replacing the fuel rail
• replacing the fuel line
• replacing the fuel pump
• replacing the fuel filter
• replacing the EVAP canister
• replacing the fuel fill pipe
• replacing the fuel tank
• it has been removed from the line
• it is damaged

Fig 7: Identifying Connector And Line Ends With Plastic Bags

Courtesy of AMERICAN HONDA MOTOR CO., INC.
