CKP Sensor Replacement

Raise the vehicle on a lift.
NOTE: Make the vehicle is level, because engine oil will drip out when you remove the sensor.
Remove the CKP sensor cover (A).

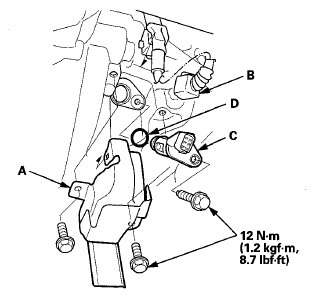

Fig 1: Identifying CKP Sensor, Cover, Connector And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CKP sensor connector (B).
Remove the CKP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D).
Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
Check for engine oil level, and add more oil if needed.
