ELD Replacement

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).

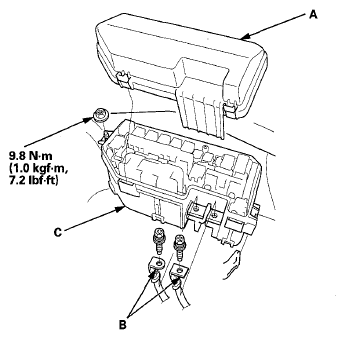

Remove the upper cover (A), then remove the two positive (+) terminals (B).

Fig 1: Identifying Upper Cover, Positive (+) Terminals And Under-Hood Fuse/Relay Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the under-hood fuse/relay box (C) from the bracket.

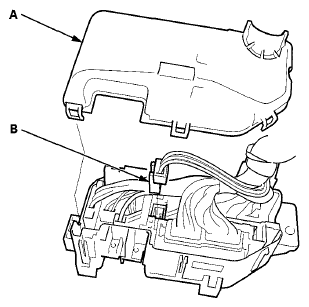

Remove the lower cover (A). A-

Fig 2: Identifying Lower Cover And ELD 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ELD 3P connector (B).

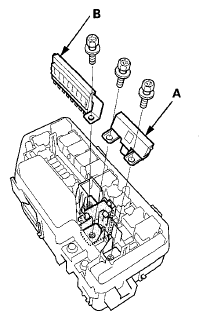

Remove the fuses (A) and (B).

Fig 3: Identifying Fuses
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the three lock tabs (A), then remove the ELD (B).

Fig 4: Identifying Lock Tabs And ELD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
