With SH-AWD

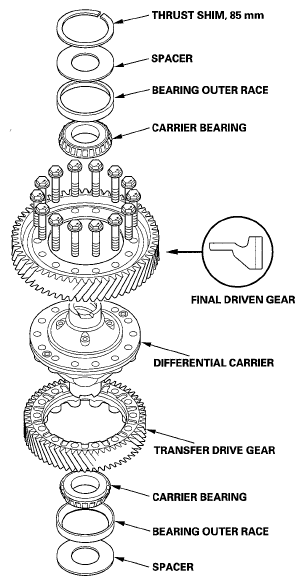

Fig 1: Identifying A/T Differential Component Location - With SH-AWD
G05991211Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without SH-AWD

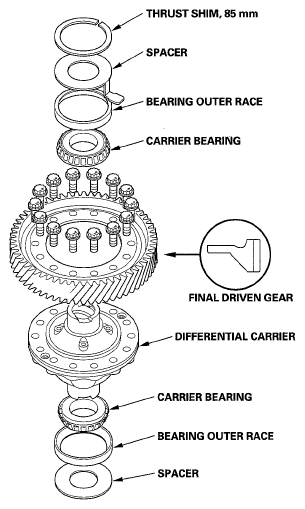

Fig 2: Identifying A/T Differential Component Location - Without SH-AWD
G05991212Courtesy of AMERICAN HONDA MOTOR CO., INC.
