Shift Lever Disassembly/Reassembly

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves

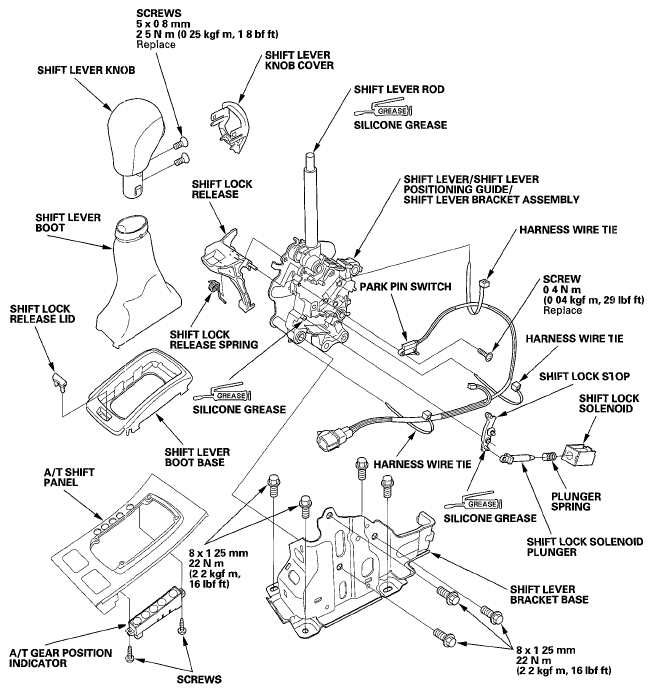

Fig 1: Exploded View Of Shift Lever With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
