Regulator Valve Body

The regulator valve body is located on the main valve body The regulator valve body contains the regulator valve, the cooler check valve, the lock-up control valve, the servo valve/shift fork shaft, and the 3rd accumulator

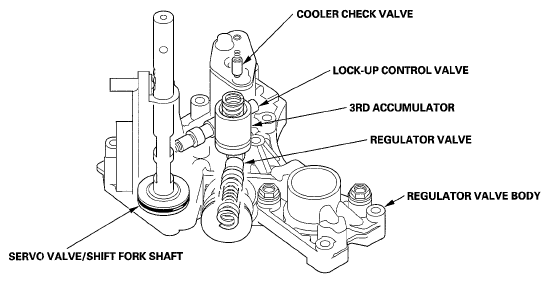

Fig 1: Identifying Regulator Valve Body Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
